Sunhaven Grande Cantilever Umbrella

As low as $2,796.00 Regular Price $3,495.00
In stock
Only %1 left
4 Interest Free Payments of $699.00

The Sunhaven Grande is the big daddy of our ready-made cantilever umbrella range. Two large sizes, premium acrylic fabric, an easy tilt mechanism, 360 degree rotation, and a 60km/h wind rating* make this large shade structure ideal for those who need shade in a windy location. Perfect for pools, courtyards and anywhere you want to enjoy the outdoor lifestyle safe from the hot sun. A complimentary protection cover is included but upgrade to heavy duty cover for long life and extra protection.

PRE-ORDER AND SAVE 20% - ETD 11th December 2023
RRP from $3495 - Now $2796

  • Wind stabilizer bars + $79.00
Fill in your delivery details to check available shipping options and calculate rates for this product.Please Note: Shipping quotes are subject to our Shipping Policy.


The Sunhaven Grande is constructed on a heavy-duty aluminum frame with a charcoal-grey powdercoat finish. Aluminium is the preferred option over steel because it is highly resistant to the elements and doesn’t rust. All the fittings are stainless steel (with the exception of the bolt-down base which is galvanised steel).

Particular attention has been given to the slider-mechanism which controls the umbrellas opening and closing. It is very heavy-duty and a newly designed handle on the back makes it very easy to use.

The umbrella opens and closes via a winder handle connected to a stainless-steel cable. By lifting the handle and winding the handle the umbrellas easily opens and closes.

Due to the overall size and weight of the umbrella, we only offer it as a bolt-down or inground installation only. It’s not suitable for a movable base system.

The acrylic canvas used on this umbrella offers 99% UV protection (UPF50) as well as giving some level of protection from rain. The fabric comes with a 4 Year warranty.  To ensure correct tension, each arm has a spring-loaded tensioner whilst the fabric is reinforced with webbing and held in place with stainless steel screws. This also means that the canopy can easily be replaced should it ever become damaged.



  • Rust resistant aluminium frame
  • Powdercoated charcoal grey finish
  • Very heavy-duty construction
  • Stainless steel fittings
  • Powdercoated grey frame
  • 360° rotation
  • Adjustable vertical tilt
  • Detachable crank winder
  • UPF50+ acrylic solution-dyed canopy
  • Fade resistant fabric
  • 60 km/h wind rating
  • Complimentary protective waterproof cover to protect umbrella when not in use
  • Bolt-down or Inground base
  • Optional wind-stabiliser bars

While this umbrella has passed a wind rating test of 60km/h, this is more suitably used as a comparative guide on the strength of the umbrella. It is not suggested to leave this umbrella open in winds up to 60km/h. This is because the wind tunnel test is done with a consistent, even wind coming from an optimal direction. Windy conditions are not this consistent; they are unpredictable and gusty. All cantilever umbrellas should be collapsed in breezy conditions. Wind damage is NOT covered by warranty.

Sunhaven Grande Features - Cantilever UmbrellaSunhaven Grande Features - Cantilever Umbrella

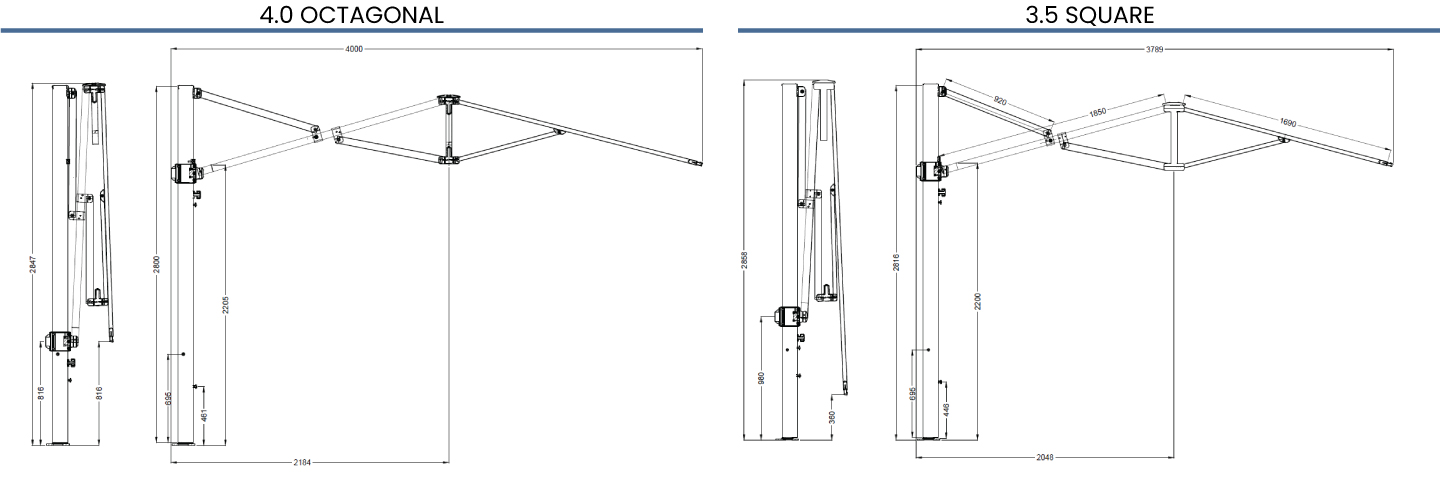

The Sunhaven Grande is available in the following two sizes:

  • 3.5 x 3.5m Square
  • 4.0m Octagonal


This Sunhaven Cantilever Umbrella has 4 Year warranty on the fabric against fading and a 2 year workmanship warranty on the frame.

Sunhaven Umbrella WarrantySunhaven Umbrella Warranty


Aramac Acrylic is a global brand marketed in different countries under different names. In Australia, Aramac is favourably compares to Sunbrella Acrylic in all key features except price! The following table gives a technical comparison.

Aramac Acrylic Comparison Table - Aramac is Class 3

 Class 1Class 2Class 3Class 3+
Fabric MaterialPolyesterOlefin100% Acrylic Aramac Canvas100% Sunbrella Acrylic Canvas
Manufacture MethodDip-DyedSolution DyedSolution DyedSolution Dyed
Fabric Weight180-300gsm230-270gsm220-280gsm210-270gsm
Colour FastnessBelow 500 hours500 hours2000 hours2200 hours
UV ProtectionUPF 50UPF 30-40UPF 50UPF 50
Tear ResistanceLowPassHighExcellent
Age ResistancePassPassExcellentExcellent
Water Repellency70909090
Warranty1 Year1-2 Years4-5 Years5 Years
Cost Comparison20%50%100%150-250%
gsm = grams per square metre




Charcoal Grey

Heather Beige

Light Grey

*Please note: Colours may vary slightly between screens and the actual product.

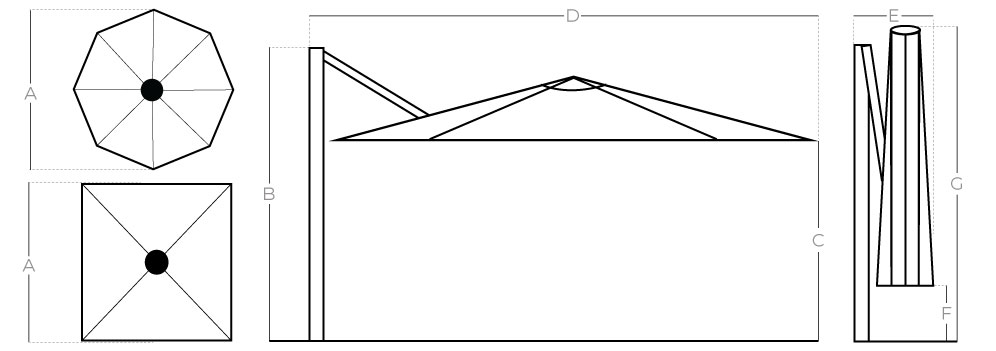

SIZE4.0 Oct3.5 Squ
Area (M2)12.2512.2
Cover Size Extra Large Cantilever




  • Deluxe Protection cover
  • Wind stabiliser bars

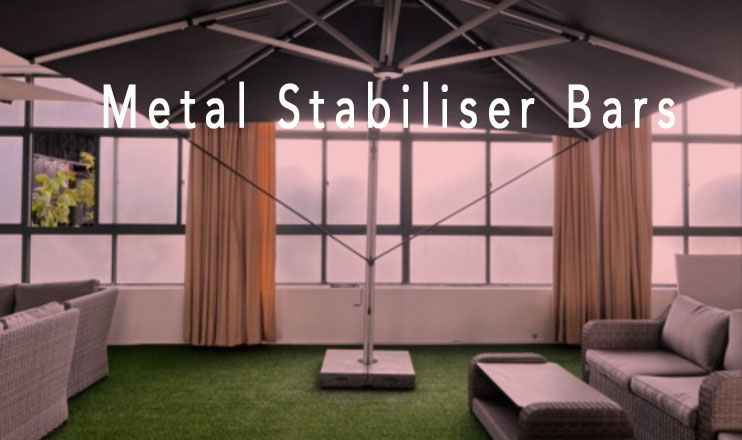

Wind stabliser bars are specifically made for the Sunhaven Grande. They are made of metal and lock into the mast and attach to the outer arms. This greatly enhances the stability of the umbrlela in breezy conditions. The bars work when the umbrella is in both the tilt and the horizontal postions.

metal stabiliser barsmetal stabiliser bars


The Sunhaven Grande cantilever umbrella is a large robust cantilever umbrella which will look great and give many years of reliable service. It combines ease of operation with strength and style. Limited Stock available
